Weidmuller 7760056086 4PDT 230 VAC Relay – Box of 20

Description

Description:

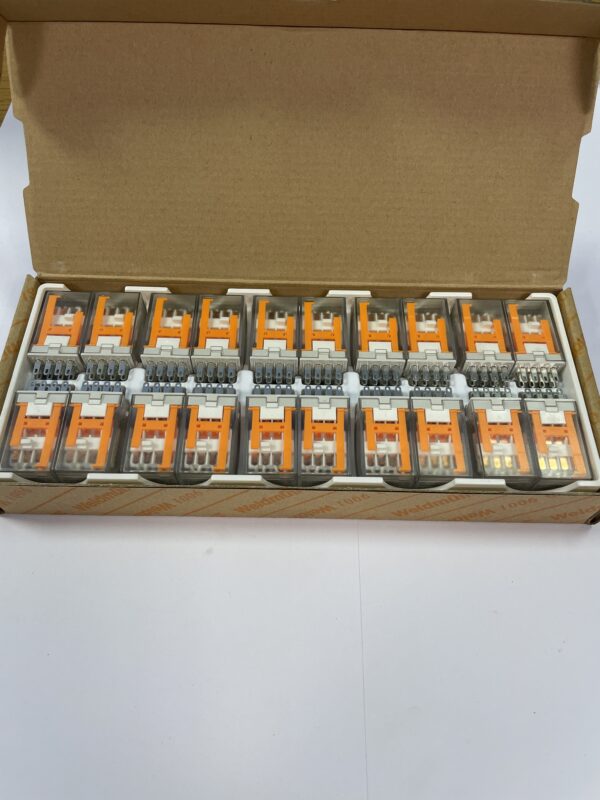

The Weidmuller 7760056086 is a high-quality 230 VAC 4PDT Signal Relay, designed for industrial applications requiring reliable switching and control. This listing includes a box containing 20 individual relay modules, each featuring a compact design suitable for panel mounting.

Key Specifications:

• Model / Part No.: 7760056086 (D-Series DRM)

• Type: 4PDT (4 Form C) Signal Relay

• Control Voltage: 230 V AC

• Continuous Current: 5 A

• Contact Material: Silver Alloy with flash gold plating

• Coil Resistance: 15,000 Ω ±10%

• Coil Power Consumption: Approximately 1.0–1.2 VA at 60 Hz

• Switching Capacity:

  • AC (resistive load): Up to 1,250 VA

  • DC (resistive load): Up to 120 W at 24 V DC

• Minimum Switching Power: 10 mA at 12 V

• Inrush Current: 10 A for 50 ms

• Operate Time: <20 ms

• Release Time: <20 ms

• Mechanical Service Life: 20 million switching cycles

• Contact Configuration: 4 Form C (4PDT)

• Mounting: Panel mount with plug-in connection

• Operating Temperature Range: –40 °C to +55 °C

• Storage Temperature Range: –40 °C to +70 °C

• Dimensions: 21.5 mm (W) × 36 mm (D) × 28 mm (H)

• Weight per Unit: Approximately 33.9 g

• Certifications: cURus, RoHS compliant

Applications:

Ideal for use in industrial automation systems, control panels, and other applications requiring reliable switching of AC loads. The compact design and robust features make it suitable for various control and automation tasks.
