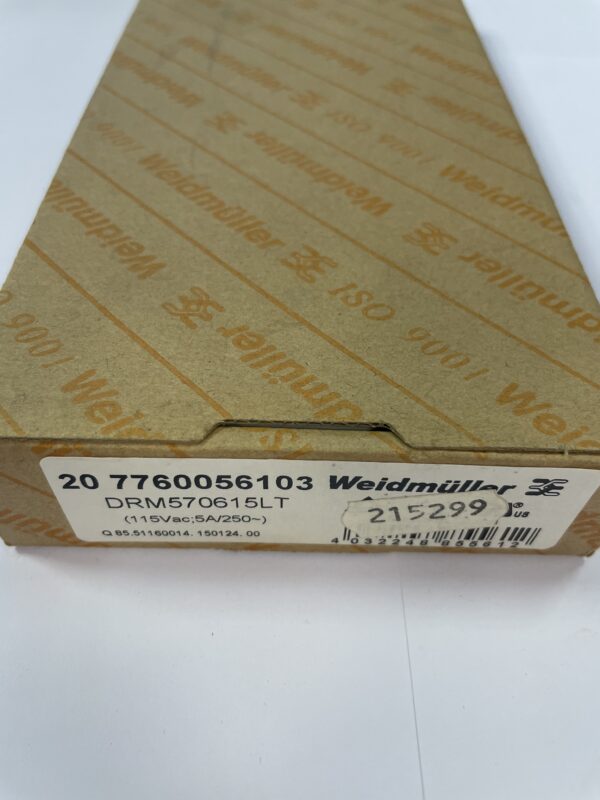

Weidmuller 7760056103 4PDT 115 VAC Relay – Box of 20

Description

Description:

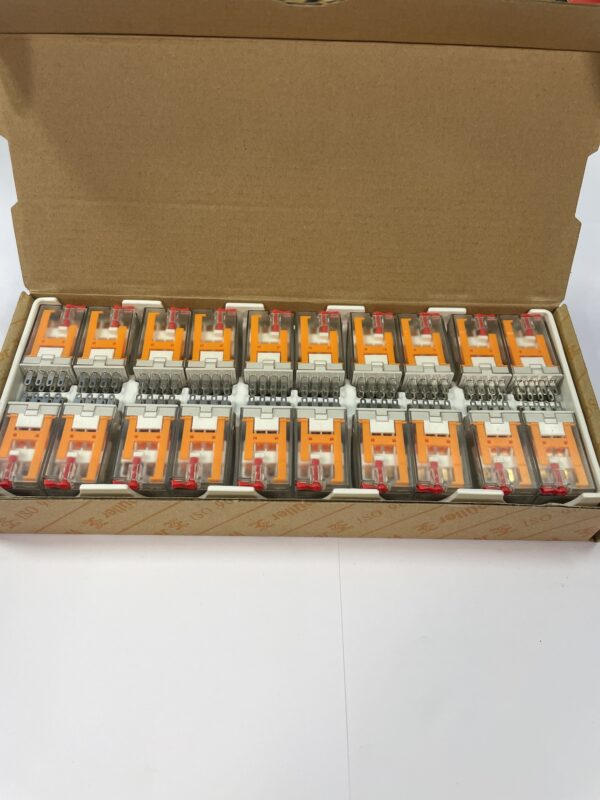

The Weidmuller 7760056103 is a high-quality 4PDT 115 VAC signal relay, designed for industrial applications requiring reliable switching and control. This listing includes a box containing 20 units, each featuring a compact design suitable for panel mounting.

Key Specifications:

• Model / Part No.: 7760056103

• Type / Contact Configuration: 4PDT (4 Form C) Signal Relay

• Control Voltage: 115 V AC

• Continuous Current: 5 A

• Contact Material: Silver Alloy

• Coil Resistance: 4.34 kΩ

• Coil Power Consumption: Approximately 1.5 W

• Switching Capacity:

  • AC (resistive load): Up to 1,500 VA

  • DC (resistive load): Up to 144 W at 24 V DC

• Minimum Switching Power: 10 mA at 12 V

• Operate Time: <20 ms

• Release Time: <20 ms

• Mechanical Service Life: 20 million switching cycles

• Mounting: Panel mount with plug-in connection

• Operating Temperature Range: –40 °C to +55 °C

• Dimensions: 21.5 mm (W) × 36 mm (D) × 28 mm (H)

• Weight per Unit: Approximately 33.9 g

• Certifications: cURus, RoHS compliant

Applications:
Ideal for industrial automation systems, control panels, and other applications requiring reliable switching of AC loads. The compact design and robust features make it suitable for various control and automation tasks.
